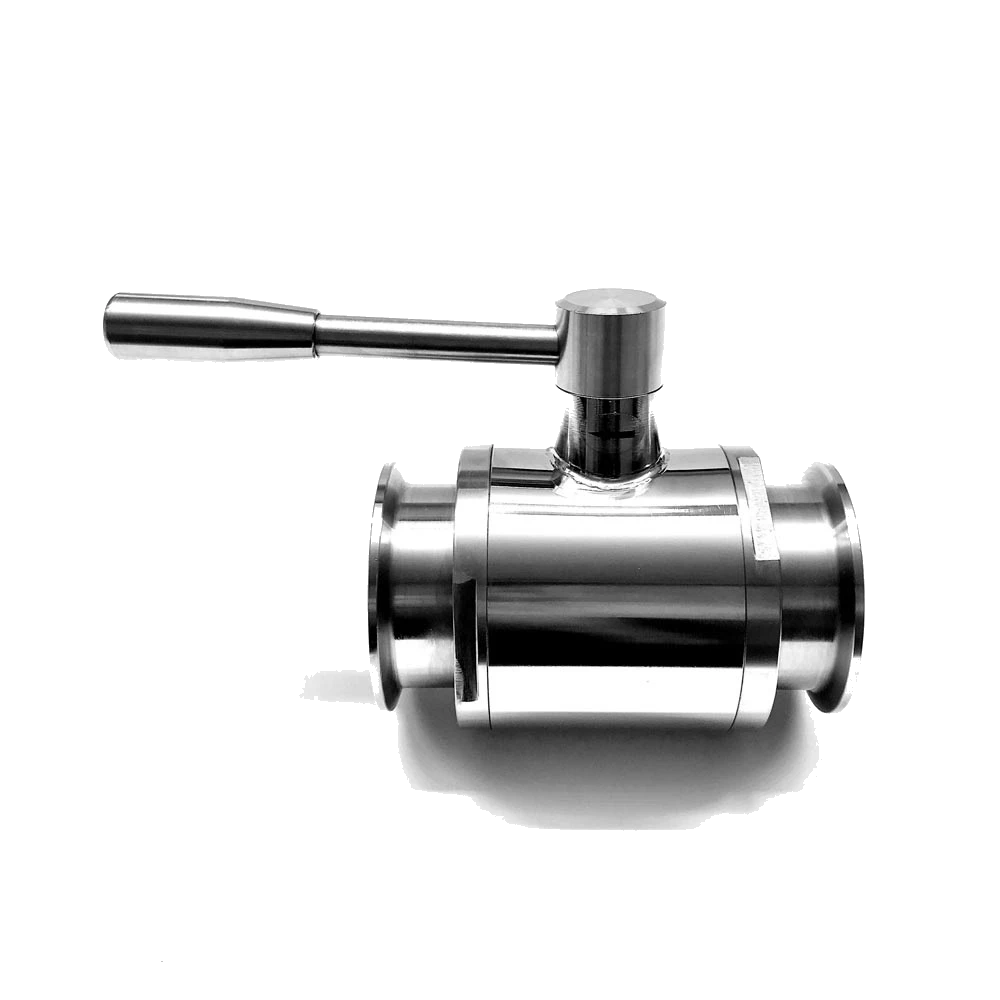

Rizzato Inox – Valvola a Sfera inox 2 Vie Attacchi CLAMP
Valvola a Sfera inox 2 Vie Attacchi CLAMP di Rizzato Inox (codice prodotto 265). Nella tabella sotto i 20 articoli disponibili con codice, descrizione e caratteristiche.
Dati tecnici
| Dimensioni | DA DN 1/2” A DN 4” |
| Materiale | AISI 304/304L 1.4301/1.4307 – AISI 316/316L 1.4401/1.4404 |
| Pressione max esercizio | (DN 40/50/65/80) 15 BAR -(DN 100) 10 BAR |
| Temperatura esercizio | -10°C / +90°C |
| Ricavato da | FORGIATO/BARRA |
| Certificazione MOCA | Disponibile |
Articoli e codici
| Cod. Art. | Descrizione | Diametro | Materiale | Norma |
|---|---|---|---|---|
| 4VA01T01 | VALV.A SF.2V CLAMP/CLAMP 1/2″ 304 | 1/2"(12,7) | AISI 304/304L | CLAMP |
| 6VA01T01 | VALV.A SF.2V CLAMP/CLAMP 1/2″ 316 | 1/2"(12,7) | AISI 316/316L | CLAMP |
| 4VA01T02 | VALV.A SF.2V CLAMP/CLAMP 3/4″ 304 | 3/4"(19,05) | AISI 304/304L | CLAMP |
| 6VA01T02 | VALV.A SF.2V CLAMP/CLAMP 3/4″ 316 | 3/4"(19,05) | AISI 316/316L | CLAMP |
| 4VA01T03 | VALV.A SF.2V CLAMP/CLAMP 1″ 304 | 1"(25,4) | AISI 304/304L | CLAMP |
| 6VA01T03 | VALV.A SF.2V CLAMP/CLAMP 1″ 316 | 1"(25,4) | AISI 316/316L | CLAMP |
| 4VA01T04 | VALV.A SF.2V CLAMP/CLAMP 1″1/2 304 | 1"1/2 (38,1) | AISI 304/304L | CLAMP |
| 6VA01T04 | VALV.A SF.2V CLAMP/CLAMP 1″1/2 316 | 1"1/2 (38,1) | AISI 316/316L | CLAMP |
| 4VA01T05 | VALV.A SF.2V CLAMP/CLAMP 2″ 304 | 2"(50,8) | AISI 304/304L | CLAMP |
| 6VA01T05 | VALV.A SF.2V CLAMP/CLAMP 2″ 316 | 2"(50,8) | AISI 316/316L | CLAMP |
| 4VA01T06 | V.A SF.2V CLAMP/CLAMP 2″1/2 P.48 304 | 2"1/2(63,5) – Pass. 48 | AISI 304/304L | CLAMP |
| 6VA01T06 | V.A SF.2V CLAMP/CLAMP 2″1/2 P.48 316 | 2"1/2(63,5) – Pass. 48 | AISI 316/316L | CLAMP |
| 4VA01T11 | V.A SF.2V CLAMP/CLAMP 2″1/2 P.65 304 | 2"1/2(63,5) – Pass. 65 | AISI 304/304L | CLAMP |
| 6VA01T11 | V.A SF.2V CLAMP/CLAMP 2″1/2 P.65 316 | 2"1/2(63,5) – Pass. 65 | AISI 316/316L | CLAMP |
| 4VA01T10 | V.A SF.2V CLAMP/CLAMP 3″ P.65 304 | 3"(76,2) – Pass. 65 | AISI 304/304L | CLAMP |
| 6VA01T10 | V.A SF.2V CLAMP/CLAMP 3″ P.65 316 | 3"(76,2) – Pass. 65 | AISI 316/316L | CLAMP |
| 4VA01T07 | VALV.A SF.2V CLAMP/CLAMP 3″ P.73 304 | 3"(76,2) – Pass. 73 | AISI 304/304L | CLAMP |
| 6VA01T07 | VALV.A SF.2V CLAMP/CLAMP 3″ P.73 316 | 3"(76,2) – Pass. 73 | AISI 316/316L | CLAMP |
| 4VA01T08 | VALV.A SF.2V CLAMP/CLAMP 4″ 304 | 4"(101,6) | AISI 304/304L | CLAMP |
| 6VA01T08 | VALV.A SF.2V CLAMP/CLAMP 4″ 316 | 4"(101,6) | AISI 316/316L | CLAMP |
